| Dimension | 965 x 385 x 85 mm |
|---|---|
| Color | Yellow |
| Material | Polyethylene |
| Weight | 8 kg |
| Shipping time | 2-3 days |

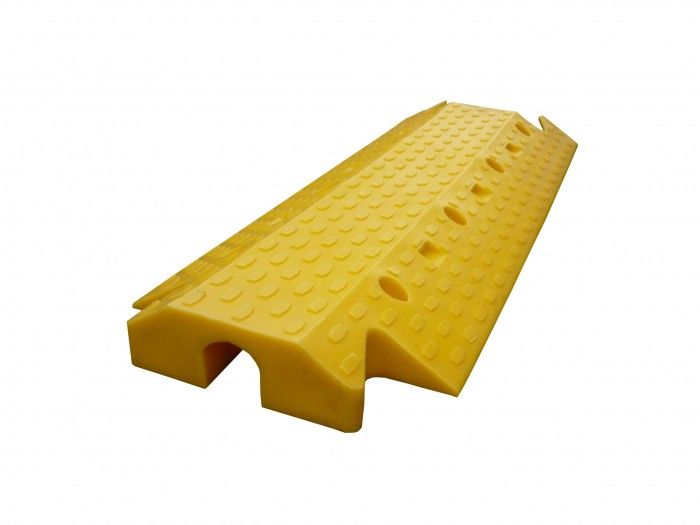

Yellow PE cable/fire hose protector – highly visible cable ramp & hose bridge
The professional yellow Yellow PE cable/fire hose protector is a high-visibility heavy-duty protector ramp constructed from high-density polyethylene. Specially designed to shield fire hoses (such as 2-inch supply hoses), electrical cables, and technical wires, it prevents any external damage caused by pedestrian traffic and occasional passenger vehicles during firefighting operations, public events, construction, or industrial works.
Thanks to its bright yellow warning color, the cable cover ramp is easily spotted from a distance, minimizing tripping hazards and collision risks. Using robust PE material, the cable cover ramp offers remarkable resistance against heavy compression, mechanical cracking, frost, and outdoor moisture. The smart modular coupling system with dovetail connectors enables rapid and firm integration of multiple units. Additionally, the ramp is equipped with 8 pre-drilled anchor holes for optional permanent bolt-down installation into the ground.
Technical Specification
| Ramp length | 965 mm (96.5 cm) |
| Ramp width | 385 mm (38.5 cm) |
| Ramp height | 85 mm (8.5 cm) |
| Channel size (clearance) | 65 mm (height) x 72 mm (width) |
| Material | High-density Polyethylene (HDPE) |
| Ramp color | Yellow |
| Product weight | approx. 8 kg |
| Connection type | Dovetail interlocking locks |
Product Applications
- Emergency rescue: Safe routing for high-pressure water supply hoses across roads.
- Construction fields: Guarding heavy power lines from foot traffic, avoiding tripping hazards.
- Public events: Covering multi-core stage cables and broadcast wires in crowd walking paths.
Key Advantages
- Generous cable channel: The 65 x 72 mm channel comfortably houses larger lines and hoses.

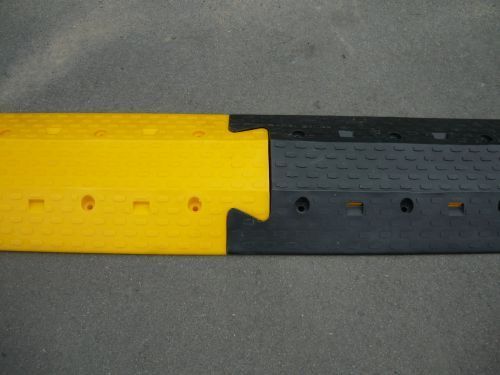

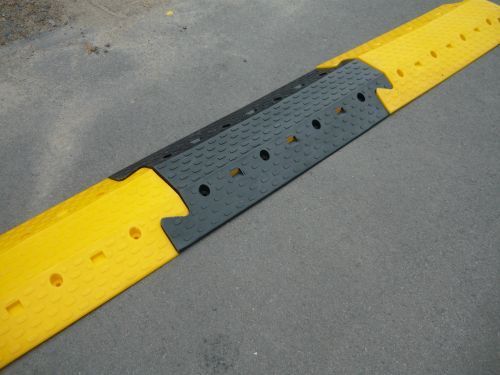

- Interlocking modular locks: Dovetail design keeps units firmly connected under pressure.
- Anchor-ready: 8 pre-drilled holes allow steady bolt-down placement to roads.
- Outstanding warning visibility: Bright yellow color helps to prevent accidental stepping and vehicle collisions.
Expert Opinion – Reliable hose bridging and cable shielding
Polyethelene hose bridges are absolute essentials for ensuring uninterrupted flow during rescue missions. They protect fire hoses from sudden pressure drops due to vehicle tires rolling over them. Please keep in mind that this ramp is designed for pedestrian use and occasional light vehicle traffic, and should not be used for heavy freight truck zones.
FAQ – Frequently Asked Questions
What hose sizes can fit in the channel?
The 65 x 72 mm clearance is ideal for fire hoses up to 2-inch nominal size (unpressurized) and heavy power supply cords.
Can these cable protectors be laid in a curve?
The dovetail joints are made for straight lines, but slight angle adjustments are possible through the joints' natural clearance.
Is bolt-down installation mandatory?
For temporary emergency or event use, the unit's weight of approx. 8 kg provides ample stability without anchoring.
The highly visible yellow PE cable/fire hose protector is a heavy-duty, 96.5 cm long warning ramp designed to shield hoses and power lines.
- Cable channel 65 x 72 mm: Spacious clearance designed for fire hoses and main power wires.
- High-density Polyethylene: Impact-resistant HDPE material ensures extreme compression strength and weather resistance.
- Dovetail coupling: Toolless, secure modular locking to connect multiple ramps quickly.
- 8 anchoring holes: Ready for steady ground installation using screws and rawlplugs.
- High-visibility warn color: Bright yellow body prevents tripping accidents and forklift collisions.
